Wholesale black and white 8mm 10mm PE pipe plastic pipe wire and cable metering ribbonis suitable for the printing of the factory name,label,type,specification,time on the PVC and PE cable and plastic pipe.
The printing effect can meet the repuirement of the imported products.

Thermal transfer ribbon product specification

Name: DL52 cable belt

Application field

Applicable to all kinds of cables, rubber products, etc. for date code.

Technical Parameters

1. Appearance: The layer is even and the hiding power is good.

2, color: black, white, red, yellow, blue.

3, hot stamping temperature: 90-110 (°C).

4, the characteristics of the imprint: the imprint is full and round, not easy to fall off.

5, product specifications: width 5,6,7,8,9,10,12,15 (mm); length

500, 800, 1000, 1500, 2000 (m).

6, the core diameter: 26 ± 1 (mm).

7, thickness: base film thickness 12 (um); coating thickness 8 ± 1 (um); total thickness 20 ± 1

(um).

8. Tensile strength: ≥50 (MPA).

9, elongation at break: ≥ 30%.

Note: Special colors can be customized.

Performance characteristics

1. The printed characters are round and full, and the hiding power is moderate.

2, the printing handwriting has good anti-friction effect, and it can't be scorned.

Routine testing standards:

1, printing effect: temperature 120 ° C -150 ° C, pressure 2KG conditions, pneumatic

Cable printer printing, soft plastic, rubber products print clearly, full and round handwriting;

2, adhesion: 20 times (with 1.0Kg cylindrical iron rod end of a layer of A4 paper water

Flat rubbing prints, the number of rubbing before the missing marks); tape paper paste, open

There are defects in the writing, but it is still legible.

Product storage and shelf life:

Store in a cool, dry place; shelf life is one year.

Description:

This product is made of imported high-quality raw materials, carefully developed, processed and produced by thermal transfer meter

Printing tape. It has the advantages of clear printing, firmness, stable performance and convenient use. Suitable for

Communication cables, optical cables, and surface printing and metering of various plastic pipes.

Precautions:

This ribbon is not suitable for printing on hard materials such as ABS, if it is required on such materials.

Use, consider increasing the printing pressure.

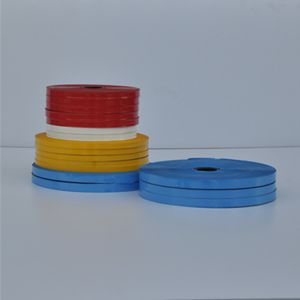

Detailed Images

packing into cartons

We mainly export hot coding foil and thermal transfer ribbon, hot ink roll

And we can produce the products accoding to your requirement

1. We have very more experience in import and export business.

2. All of our products comply with international quality standards.

3.We can do customer’s design and requirement

4. We mainly export to Europe , Americal , South Americal, Africa, the Middle East. Australia, New Zealand etc.

1) Q: Can you provide free samples for view quality of your products?

A: Yes , We are honor to provide sample for you see the quality .

2) Q: What is your MOQ:

A: Our MOQ is 1000 rolls per order

3) Q: How long you can delivery the goods out after signed contract?

A: Usually 3-5days.

Xinxiang Echo Supplies provides  and Produce  competitive price ,high performance machinery  such as vibratory screening equipment, conveying equipment, lifting equipment, feeding equipment, crushing equipment and other grain equipment. The products are widely used in chemical, metal, mining, abrasive, ceramic, pigment, paint, food and other industries. At present, the company's products already have 7 national patents, and passed ISO9001 certification in 2002.and related articles of consumption  and swift delivery , we have successfully set up business relationship with clients from more than 100 country and regions mainly in Austrailia, Middle East Area , Africa, Southeast Asia,Middle Asia and Russia and So on.

We strongly feel that customers not only need equipments with good performance but also in hope of their efficiency their benefit and their competitive power. So high value added equipments have been produced . we have nevery been satisfied our customer’s satisfaction is our almost objective.

Echo supplies hopes to be your satisfied business partner in future!
